Master The Motoman NX100 Advanced Programming Manual For 2026 Industrial Automation
Industrial automation continues to evolve rapidly, and mastering legacy yet robust controller architectures remains a vital skill for robotics professionals. This guide serves as an exhaustive resource for engineers and programmers seeking to navigate the intricacies of the Motoman NX100 advanced programming manual. Whether you are optimizing legacy production lines or maintaining multi-axis robotic cells in modern manufacturing facilities, understanding the advanced features of the NX100 controller is essential for maximizing operational efficiency and minimizing downtime in 2026.
Understanding the NX100 Architecture and Controller Specifications

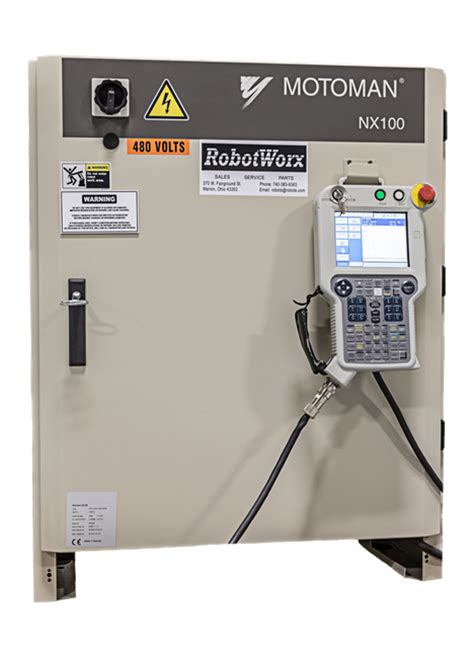

The Motoman NX100 controller revolutionized industrial robotics with its parallel processing capabilities and high-speed execution times. Designed to handle complex multitasking environments, the controller supports up to four robots—equivalent to 36 axes—simultaneously. This multi-robot control architecture requires a deep understanding of task management, concurrent job execution, and collision avoidance algorithms.
To fully leverage the advanced programming manual, programmers must first understand the underlying hardware and software constraints. The system utilizes an intuitive Windows CE-based programming pendant (the Pendent Programming Unit, or PPU) featuring color touchscreen capabilities and customized soft keys.
Core Hardware and Software Parameters
- Controller Architecture: Dual-CPU architecture handling motion control and system tasks independently.
- Maximum Axis Control: Up to 36 axes across 4 distinct robot stations.
- Programming Language: INFORM III, supporting advanced macro calls, arithmetic operations, and conditional branching.
- Communication Protocols: Standard support for Ethernet, DeviceNet, Profibus-DP, and CC-Link for seamless PLC integration.
Advanced INFORM III Programming Constructs and Syntax
While basic programming covers simple point-to-point motion commands like MOVJ and MOVL, the advanced programming manual delves deeply into complex logic handling. INFORM III provides robust capabilities for mathematical computations, string manipulations, and variable management that transform a standard robot into an intelligent manufacturing node.
Advanced programmers frequently utilize byte, integer, double-precision, and real variables to dynamically adjust robot paths based on sensor feedback. For instance, implementing shift functions (SFTON and SFTOFF) allows the controller to dynamically offset entire programs based on vision system coordinates or part variation, eliminating the need for manual reprogramming when tooling shifts occur.
Execution Safety Note: Always verify variable ranges and coordinate frames before executing dynamic shift commands in production environments to prevent catastrophic collisions with surrounding tooling or fixtures.
Key Programming Commands for Complex Automation
- ARITHMETIC OPERATIONS: Commands such as SET, ADD, SUB, MUL, and DIV allow real-time calculation of offset values and counter tracking directly within the job file.
- CONDITIONAL BRANCHING: Utilizing IF, JUMP, and CALL statements enables dynamic program flow based on digital input states or register values.
- MACRO INSTRUCTIONS: Creating customized macro jobs simplifies repetitive tasks, allowing parameters to be passed dynamically from parent jobs to sub-routines.
Robôs Yaskawa usados Motoman ES200n NX100 control | Eurobots
Multi-Tasking and Concurrent Job Execution
One of the defining capabilities highlighted in the advanced manual is the concurrent execution of multiple jobs. In complex robotic cells where a single robot handles material loading, welding, and part inspection simultaneously, task management prevents bottlenecks.
The NX100 supports concurrent jobs through concurrent job execution (CJUMP) and task-specific starting parameters. Programmers can assign priority levels to different tasks, ensuring that safety-critical monitoring routines or gripper feedback loops take precedence over cosmetic motion adjustments.
| Feature / Capability | Standard Programming Mode | Advanced Multi-Tasking Mode |
|---|---|---|
| Maximum Concurrent Jobs | 1 Job per Station | Up to 16 Jobs across multiple tasks |
| Axis Control Allocation | Dedicated per robot base | Dynamic sharing and coordinated motion |
| Input/Output Polling | Sequential scanning | Real-time interrupt-driven monitoring |
| Error Recovery Handling | Program halt and manual reset | Automated fault-branching and resume routines |
Advanced Path Optimization and Speed Control
Achieving optimal cycle times requires advanced trajectory planning. The NX100 controller features cutting-edge vibration suppression and smoothing algorithms designed to reduce mechanical wear while maximizing acceleration and deceleration profiles.
Programmers can implement smooth transition angles using specific motion tags like PL (Path Level) settings. By adjusting the PL parameter from 0 to 8, the robot determines how closely it must approach a programmed point before rounding the corner toward the next destination. This prevents unnecessary stopping and starting, drastically reducing cycle times in high-speed pick-and-place or dispensing applications.
Furthermore, utilizing the NWAIT and DOUT instructions in conjunction with motion commands allows for output signals to fire precisely at a calculated percentage of the motion path, rather than waiting for the axis to come to a complete halt.
Troubleshooting Complex Programming Faults and System Alarms
Advanced programming inherently involves intricate logic structures that can occasionally result in runtime errors, syntax issues, or kinematic singularities. The NX100 system provides comprehensive error logs and alarm codes divided into categories such as system errors, user alarms, and motion errors.
When troubleshooting advanced jobs, engineers must utilize the diagnostic screen on the programming pendant to trace variable states and active instruction lines.
Common Advanced Programming Error Scenarios and Remedies
- Singularity Approach Alarms: Occurs when the robot wrist approaches a geometric alignment where degrees of freedom are lost. Remedy: Modify joint angles in the preceding motion command or introduce an intermediate point to bypass the singularity zone.
- Variable Overflow Errors: Triggered when arithmetic operations exceed the maximum storage capacity of integer or real registers. Remedy: Implement bounding checks using conditional logic before executing multiplication or addition commands.
- Interlock Mismatches: Happens when concurrent jobs attempt to access the same hardware resource or I/O block simultaneously. Remedy: Utilize Mutex (mutual exclusion) flags or semaphore instructions to properly sequence resource sharing between tasks.
Frequently Asked Questions
What is the primary programming language used in the Motoman NX100 controller?
The primary programming language is INFORM III, which supports motion instructions, arithmetic calculations, and advanced flow control commands. INFORM III allows programmers to write structured, readable code that interfaces directly with robot axes and peripheral I/O.
How many robots can a single NX100 controller manage simultaneously?
A single NX100 controller can manage up to four robots or a total of 36 axes, enabling highly synchronized multi-robot automation cells. This multi-station capability requires advanced task management and concurrent job programming.
Can the NX100 controller integrate with external vision systems?
Yes, the NX100 supports communication interfaces and shift functions that allow external vision systems to transmit coordinate data directly to position registers. This data is then utilized to dynamically adjust robot paths using shift instructions.
What is the purpose of the Path Level (PL) setting in advanced motion control?
The PL setting determines how smoothly and closely the robot rounds corners between consecutive motion commands without stopping. Adjusting this parameter optimizes cycle times by maintaining momentum during continuous-path operations.
Where can technicians find official documentation and safety guidelines for the NX100?
Official documentation, including the Motoman NX100 advanced programming manual and maintenance guides, should be sourced directly through authorized Yaskawa Motoman representatives or verified technical support portals to ensure compliance with current safety standards.
Optimizing Your Automation Workflow
Mastering the Motoman NX100 advanced programming manual unlocks the full potential of your robotic hardware, translating to faster cycle times, reduced mechanical stress, and seamless multi-tasking integration. As industrial environments continue to modernize, leveraging these advanced programming techniques ensures your manufacturing cells remain competitive and reliable. For specialized programming support, system upgrades, or custom macro development tailored to your specific facility requirements, consult with certified Yaskawa integration specialists today.
